Automatic Checkweighers

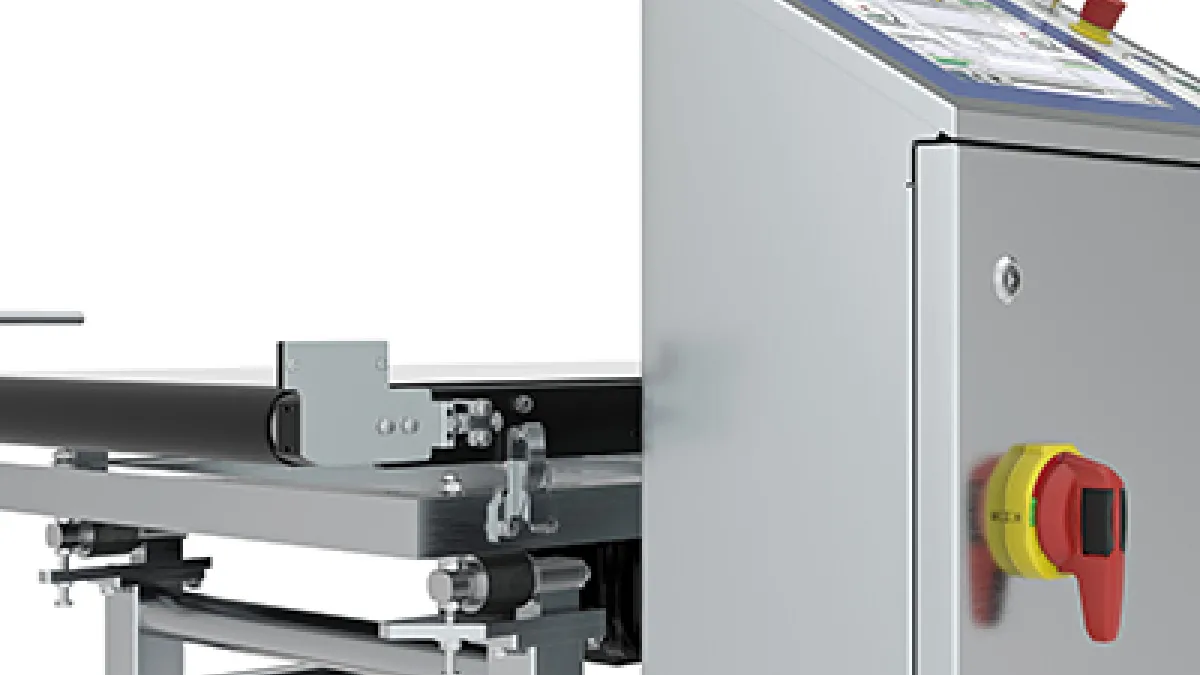

C23 PlusLine
The C23 is an in-line checkweigher with throughput of up to 150 packs/min, a weighing range of up to 80 kg, and conveyor speeds of up to 150 m/min.
The robust design of this automatic checkweigher enables its use in almost all areas of industrial production, especially in applications with high requirements for weight control of heavy products in challenging working environments.
The system is operated via a 12-inch multilingual touchscreen positioned in front of the conveyor, ensuring maximum user safety and simple system operation and control.
It is designed for maximum durability and reliability in both wet and dry working environments.
Specialised conveyors for wet conditions make regular cleaning procedures easier, helping meet strict hygiene standards.
It features more than ten communication protocols, including Ethernet, Fieldbus, and OPC technology, providing one of the most complete packages of available data collection tools. It also supports Industry 4.0 integration projects.
When integrated with a metal detector, it provides a compact space-saving system that combines metal detection with precise weight control to improve product quality and safety.
| Specification | Value |
|---|---|
| Weighing range | Up to 80 kg |
| Accuracy | From ±5 g to 10 g |
| Throughput | Max. 150 weighings/min |
| Product memory | Up to 400 products |
| Maximum product width | 1,000 mm |
| Standard display size | 12″ |
| Operating conditions | Dry environment or wet environment — system water protection required |
| System tailored to your product | 150 system configuration options are available, allowing the system to be adapted to your production requirements in order to increase efficiency and productivity. |
| Operator safety | The system is operated via a multilingual 12″ touchscreen, providing easy access and maximum operator safety. |
| Integrated solution with metal detector | The C23 is available as an integrated solution with a Mettler Toledo metal detector. This compact, space-saving system combines product inspection with precise product weight control. |
| Choice of digital or analogue load cell | The C23 offers a choice between digital and analogue load cells, capable of withstanding high loads when checking heavy products while minimising error. |
